Create Liferay Portlet

In this article we will see how to create Liferay Portlet with MVC framework. Liferay MVC is portlet framework define by Liferay to create JSR-168 / JSR-286 compatible portlets. Liferay IDE (eclipse with liferay plugin or Liferay developer studio) can be used to create Liferay MVC portlet. However we can create Liferay Portlet from command prompt also.  In this acticle we will see how to create Liferay MVC portlet by both these ways.


We will create ‘Hello Word’ portlet that simply show welcome message.

Create Liferay Portlet from command prompt

Start command prompt and go upto {plugin-SDK}/portlets folder (This is the location where all portlets reside).

Give following command to create Hello Word portlet. The project name will be hello-word and portlet title will be “Hello Word” (Make sure not to put any space in project name, however we can put space in title).

crate.bat hell-word “Hello Word” (For Window)
./crate.sh hello-word “Hello Word” (For linux).
Create Liferay portlet - Portlet Creation from Command Prompt

After giving this command, BUILD SUCCESSFUL message will be shown as above. Also if you observe under {plugin-SDK}/portlets folder, a new folder hello-word-portlet will be created as below

Create Liferay portlet - Portlet Folder Structure
Notice that Plugin SDK will append –portlet word after name of project.
I would recommend looking at index page ‘A Complete Liferay Guide‘ to browse all topics about liferay.

Create Liferay Portlet from Liferay IDE

Next we will see how to create Liferay portlet in Liferay IDE. (Which is more convenient and easy to learn). Liferay IDE means eclipse with liferay plugin or Liferay Developer Studio.

You need to make eclipse ready to work with liferay. For this you can either configure Liferay with Eclipse  or use Liferay developer studio.

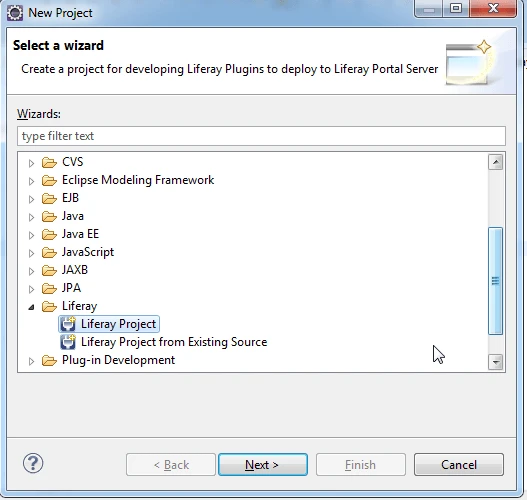

Start eclipse and click on File->New->Project. Then select Liferay Project under Liferay category and click on Next button.

Create Liferay portlet - Create Liferay Project



On the next page, give the project name as hello-word.(you can notice that display name is given by wizard automatically.You can change it).


Now make sure that in the Plugin Type section, the default Portlet  is selected because we are going to create portlet project.

Create Liferay portlet - Choose Portlet Plugin Project



In Configuration section, you need to specify Plugin SDK and Portal Runtime (Liferay-Tomcat server). Without this, wizard will not allow to process further.

Now click on Next button. Now you can see the following screen.

Create Liferay portlet - Liferay Portlet of type Liferay MVC


As we can create portlet on different technologies, this wizard allow us to create three different type of portlets.


Choose Liferay MVC (which is by default selected) and click on finish button. You will observe that project with name hello-word-portlet is created. Notice that, -portlet is appended to project name. The folder structure of this project will be looks like as below screenshot.

Create Liferay portlet - Liferay MVC In Eclipse


You can observe the following things

  • The Java source folder is created under  docroot /WEB-INF/src folder. All java classes are kept at this place.
  • Configuration files are stored under docroot/WEB-INF folder. These configuration files are comprises of standard JSR-286 portlet configuration file portlet.xml and other three liferay specific configuration files as below
    • liferay-display.xml:- This file describes the category of portlet, which will be appear under Add menu. (from top bar after login as Liferay Admin).
    • liferay-portlet.xml:- This file describes some additional liferay specific feature on top of JSR-286. Ex. We can declare the portlet as instantiable from this file. Instantiable means we can place more than one portlet instance on same page.
    • liferay-plugin-package.properties:- We can configure dependency Jars and TLDs through this file.
Now we will see content of each file and understand each elements.

First we will see portlet.xml. The content of this file is as below.




  1. portlet-name:- Unique name of portlet across.In liferay portal its also refered as portlet-id.
  2. display-name:- Short name of portlet that will be used by tool. Its not required to be unique.
  3. portlet-class:- fully qualified portlet class name.
  4. init-param:- Just like servlet, we can pass init param for portlet.
  5. expiration-cache:- defines time in second after which portlet output expires. -1 means never expire.
  6. supports:- support mime type.
  7. portlet-info:- define portlet information.
  8. security-role-ref:-will define which role can access this portlet.

Below is the content of liferay-portal.xml file



  • portlet-name:- unique name of portlet (this should be same as what we have defined in portal.xml file).
  • icon:- path to the image of icon.
  • instanceable:- defines whether multiple instance of this portlet can be placed on same page or not.
  • header-portlet-css:- path of css files which will be included in <head> section of final portlet output.
  • footer-portlet-javascript:- path of .js files for this portlet which will be included at the and of page before </body> tag.
Now its time to deploy this Liferay portlet and see how it works. Start the server and type http://localhost:8080 to brower and sign in with following credentials

username:-[email protected]
password:-test

On first time login, it will ask for password reminder. Pls give proper password and go further.


Now we will first build and deploy the Liferay portlet.


Open Ant window if its not already opened from Window–>Show View–>Ant menu option. Find build.xml in project and drag it to Ant window as mentioned in below screenshot.

Create Liferay portlet - Build portlet in Liferay IDE



Click on + sign in hello-word-portlet entry in Ant window and double click on deploy target. System will start deploying portlet on server. Once its deployed successfully, it will show success message as below.

Create Liferay portlet - portletDeploySuccessfully

Portlet is deployed on server. Next we will place the portlet on page. Pls back to the browser where are already on Welcome page after login. We will create new page called ‘test’ and will place hello-word-portlet  on it.

To create the page, click on Add from top horizontal bar and click on Page. You will see text box just next to Welcome page asking for page name. Type test and click on right tick mark just besides it.


Now click on test page and then again click on Add from top horizontal bar and click on More… You will observe that our portlet name will be just under Sample category (which is defined in liferay-display.xml file.


Now click on Add link against Hello Word name. You will notice that, our Hello Word portlet has been placed on the page.


Here there are two Hello Word portlets you can see. One which is coming with liferay (out of the box) and second which we defined.


The one which is comes with liferay is not instantiable (with purple color icon) and the one which we have created is instantiable(with green color icon).


You can try putting multiple Hello Word portlet which we have created, but you won’t able to place multiple instance of the one which comes with liferay.


The portlet which we have developed is just display one line This is the Hello Word portlet. This is because in the view.jsp file if you observe then you will find the same line.


Now you can change the content in view.jsp and re-deploy the portlet and refresh test page and see your changes.

Summing up

  • We created Liferay portlet with Liferay MVC framework.
  • com.liferay.util.bridges.mvc.MVCPortlet will work as main portlet class.
  • Path of jsp (view.jsp in our case) which is responsible for generating portlet content can be defined in portlet.xml file
  • In real life we need more customization.
  • It’s possible to extend Liferay MVC and provide custom functionality, refer a blog on how to write custom Liferay MVC portlet.
I would recommend looking at index page ‘A Complete Liferay Guide‘ to browse all topics about liferay.
