Creating custom Liferay MVC portlet

In this article, we will see how to write custom Liferay MVC portlet. Liferay MVC is a lightweight framework provided by liferay to create JSR-168/286 compatible portlets. For simplicity, we will display the string stored in request attribute.

Create Liferay MVC Portlet

First Create Liferay Portlet with project name as custom-liferaymvc and wizard will append -portlet at the end. This looks like below screenshot.

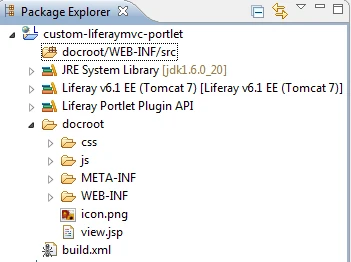

Creating custom Liferay MVC portlet - Project structure

Extending Liferay MVC Portlet

Liferay MVC portlet is ready. Our goal is to customize Liferay MVC portlet. We will make necessary changes in Liferay MVC portlet to develop our custom Liferay MVC portlet. Open portlet.xml file where the <portlet-class> entry looks like this.

We will point our custom portlet in <portlet-class> attribute. Our custom class extends LiferayMVC class. After this change the above entry will looks like below snippet.

Create the package com.companyname.portlet and java class CustomMVCPortlet in source folder.CustomMVCPortlet  extends MVCPortlet class. At this moment, project structure looks like below screenshot.

Creating custom Liferay MVC portlet - Adding custom Portlet class

Portlet class hierarchy

We are extending MVCPortlet provided by liferay. Underlying class hierarchy is as per below screenshot.

Portlet_Class_Heirarchy

  • Portlet interface define core abstract methods and it is on top in Portlet API stack. All portlets implements this interface directly or indirectly (By extending class that implements this interface)
  • Portlet interface defines init, destroy, render and processAction methods which represents init, destroy, render and action phase of portlet respectively.
  • Apart from Portlet interface, following 3 interfaces are part of portlet API
    • EventPortlet – This interface defines processEvent method. This method represent event phase of portlet and was added in JSR-268 (Portlet Specification 2.0)
    • PortletConfig – This interface defines
    • ResourceServingPortlet – This interface defines serveResource method. This method represent serve resource phase of portlet and was added in JSR-268 (Portlet Specification 2.0)
  • GenericPortlet implements all above interfaces and provides default functionality. GenericPortlet class and these interfaces are part of portlet API and available in portlet.jar (at <Liferay-bundle>/tomcat/lib/ext path)
  • LiferayPortlet extends GenericPortlet and provides additional methods. LiferayPortlet is available in portal-service.jar (at <Liferay-bundle>/tomcat/lib/ext path)
  • MVCPortlet is defined by Liferay. It extends LiferayPortlet and provides MVC architecture. MVCPortlet is available in util-bridges.jar (at <Liferay-bundle>/tomcat/webapps/ROOT/WEB-INF/lib/ path)
  • CustomMVCPortlet extends MVCPorrtlet. This is our custom Liferay MVC portlet.

Before moving further, I would like to share some brief characteristics of portlet.

1) Mode :- Portlet has various modes like View,Edit and Help. Portlet renders its output inView mode.
2) Phase:- Portlet has various phases like Render phase, Action phase, Serve Resource phase, Event phase etc.

On one page, we can place more than one portlets. On refreshing the page, all portlet’s render phase will be called by portal.

At a time, only one portlet’s Action phase is called on particular page. Action phase is called before Render phase of all portlets. However which portlet’s Render phase is called first is not predictable.

Render phase of the portlet is called soon after Action phase of that portlet is finished.You may wonder how we can call Render / Action phase of portlet. Well we have to create respective URLs on JSP with the help of Liferay TLD. On clicking these URLs, respective phase of the portlet will be called.

In Portlet Render method represents Render phase and Action method represents Action phase.

We will first create Render method that will represent Render phase of the portlet. We are overriding  render method which is defined in GenericPortlet

don’t forget to make call to super.render(request, response) at the end of this method to call render() method defined in GenericPortlet for further processing. Without calling super.render, render method will not work properly.
You can notice that, view.jsp is created at root level by default (under docroot folder). You can change its location.

portlet.xml defines page flow of portlet as init parameter. Ex. view.jsp is give as an init parameter of the portlet as below code snippet


Once render method completes, Portlet will call jsp defined in this init parameter.If you change the location of view.jsp then you have to update the location in this init parameter. For example if we place view.jsp under jsp folder (under root folder) then its relative path needs to be defined in value attribute of <init-param> (/jsp/view.jsp).

I followed above example and created jsp folder under root(docroot) folder and placed view.jsp in it. It looks like below screenshot.
Creating custom Liferay MVC portlet - define view.jspWe need to update the location in portlet.xml file also. After updates, It looks like below snippet.

I have just shown first few line of portlet.xml. I updated the location of view.jsp in <init-param>. The rest content of portlet.xml  will remain same.

Passing data from action to render method

Let’s see how render() method works. Open view.jsp file and remove the default text and put some custom text. For example, I have put “This is custom Liferay MVC portlet” and deploy the portlet.

Access the server with http://localhost:8080 and place this portlet on page. You can create new page.


Note:- To know how to build,deploy and place portlet on page, please refer my previous blog
Create Liferay Portlet

After you deploy the portlet, you will notice that the text that you written in view.jsp  is displayed.


Now we will write action method and also will show how to call this Action method.

Add following code to CustomMVCPortlet class

Explanation:-

  • @ProcessAction annotation is used to map Action method with key. Key is defined by name attribute (Ex. name=”addName” ). This key is used to create actionURL in JSP.
  • Action method can be called by creating actionURL in JSP. We can have more than one Action methods in portlet.
  • To call particular Action method, actionURL needs to be created in JSP with same key that we gave to Action method (in name attribute of @ProcessAction annotation).
  • The name of Action method can be anything.
  • Its not necessary the name of Action method and Key of @ProcessAction are same. But just for simplicity I have used the same name. (For name of Action method and Key).
  • In the body of this Action method, we just set userName attribute in request scope.
  • Also notice that, except setting attribute, there are not code exist in this Action method. Portal will call Render method after finishing Action method.
  • So when this action method is called by actionURL from view.jsp , the flow will be like Action method –> Default Render method –>View.jsp again.

Refer below code snippet to create ActionURL. Link is created with this actionURL to call Action method. (Remove the default text that we have entered)


Explanation:-

  • Portlet tld (<portlet:actionURL>) is used to create actionURL.
  • name attribute of actionURL should be match with the name attribute of @ProcessAction annotation (Key of the Action method).
  • var attribute will be used to refer this actionURL. It is added as pageScope variable in JSP. Notice that we have used this variable in href with EL.
  • You can create more than one Action url with different <portlet:actionURL> tag. The name attribute should be unique. Each actionURL defined in JSP will be tagged to unique Action method in our customMVC class by matching name attribute. (name attribute in <portlet:actionURL> and name attribute in @ProcessAction annotation in customMVC class).
  • We have written the first line, which shows the userName that we are storing in request scope in Action method.

After deploying the portlet, it renders like below screenshot.

Creating custom Liferay MVC portlet - portlet rendering

You can observe that, first time there is no userName displayed. Click on AddName link and it looks like below screenshot.



Creating custom Liferay MVC portlet - calling action to render method
You can notice that, the User name Nilang which we set in Action method is displayed. It means whatever attribute(in request) we set in Action method, will be available in Render method and also in view.jsp file.

Also notice that the success message shown at the top saying  Your request processed successfully. This message is automatically added by MVCPortlet.

Let’s see advance use of Action method. In this case,we will simply replace link with textbox and submit button. So Whatever user enter the name, it will be shown back so it will be more dynamic than first approach where we are setting hardcode attribute in Action method.

Add following changes in view.jsp file

As you can observe that I have removed the link and added text box and submit button surrounded by <form> element and given actionURL to action attribute of this form element.
Note:- Please make sure whenever you submitting with form with actionURL you need to set method as POST. Otherwise action method will not work properly.

In action method, we will read parameter from request and will set to request scope. After this change, the action method will look as below.

We are taking userName from request. I have used ParamUtil (utility class provided by Liferay) to get the request parameter. The last method parameter(of ParamUtil.get) is a default value in case if request parameter (mentioned in second position just after actionRequest in get method of ParamUtil) is not found.

Then I simply set this variable request scope. So this becomes more dynamic then the first approach.


Now deploy the portlet and refresh the page where we placed this portlet. view.jsp will look like

Creating custom Liferay MVC portlet - passing parameter

Now enter any user name say Joe Bloggs and click on Submit button. The page get refresh and view.jsp will show the entered user name as per below screenshot.
Creating custom Liferay MVC portlet - reading request parameter from action to render

You can put more complex logic in action method. Also you can have more than one action method in controller class. To understand it properly, try some hands-on with multiple actions method calling with different actionURL from JSP.
To know further about render and action phases / lifecycle you can refer this link

Summing up

  • Liferay MVC is lightweight framework provided by Liferay to create JSR-168/286 compatible framework.
  • To provide custom implementation, we can defined our own portlet class that extends LiferayMVC class provided by Liferay.
  • In this custom Liferay MVC portlet, we can define our own render logic by extending render() method. We also can defined multiple action methods.
  • This way we can define our own custom flow from action to render method.

Download Source Code

Download Source
