Liferay provides nice way to create portlet in different technologies. One of the most popular among them is through Spring – a well known java framework.
Spring also support its counter part Spring MVC for portlet. Spring Portlet MVC framework is mirror image of Web MVC framework in Spring. There are little different in Spring MVC Portlet framework.
We will first get brief introduction about Spring MVC (Web MVC) framework and then we see how to write Spring MVC Portlet in Liferay step by step.

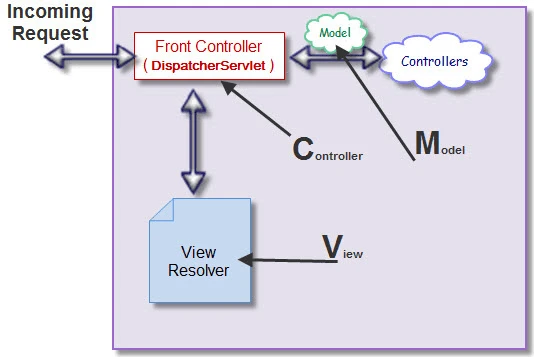

In Spring MVC, there are 3 things. 1) M-model 2)V-view 3)C-Controller. Following is the core architecture of Spring (Web) MVC framework.
- You can see that, Front Controller works as C(Controller).
- which will take the incoming request and dispatch to related handler (Controller).
- Handler (Controller) will process the request and send back the data in form of M(Model) back to Front Controller.
- Then Front Controller will select particular view with the help of View Resolver and send response back to client.
Create Spring MVC portlet
Create Portlet project skeleton by creating Liferay MVC Portlet
Define Portlet class for Spring MVC Portlet
Open portlet.xml file under WEB-INF folder. It will look like the below snippet.
<portlet> <portlet-name>first-spring-mvc</portlet-name> <display-name>First Spring Mvc</display-name> <portlet-class>com.liferay.util.bridges.mvc.MVCPortlet</portlet-class> <init-param> <name>view-jsp</name> <value>/view.jsp</value> </init-param> <expiration-cache>0</expiration-cache> <supports> <mime-type>text/html</mime-type> </supports> <portlet-info> <title>First Spring Mvc</title> <short-title>First Spring Mvc</short-title> <keywords>First Spring Mvc</keywords> </portlet-info> <security-role-ref> <role-name>administrator</role-name> </security-role-ref> <security-role-ref> <role-name>guest</role-name> </security-role-ref> <security-role-ref> <role-name>power-user</role-name> </security-role-ref> <security-role-ref> <role-name>user</role-name> </security-role-ref> </portlet>
Now our portlet class will be DispatcherPortlet (provided by Spring Framework). replace
com.liferay.util.bridges.mvc.MVCPortlet with org.springframework.web.portlet.DispatcherPortlet so that it will look like as per below snippet
<portlet-name>first-spring-mvc</portlet-name> <display-name>First Spring Mvc</display-name> <portlet-class>org.springframework.web.portlet.DispatcherPortlet</portlet-class>
I have just shown the first few lines of the portlet.xml file to show the change (in <portlet-class>). Rest content of portlet.xml will remain as it is.
After doing this change, you may get errors like The portlet class org.springframework.web.portlet.DispatcherPortlet was not found on the Java Build Path in portlet.xml file.
This is because the class DispatcherPortlet is not yet present in the classpath. I will show how to resolve this in STEP 5.
Create Spring application context file
Next is to define the Spring application context file. Any spring project must have atleast one Spring application context (xml) file where all beans are defined.
We will create one XML file just under docroot/WEB-INF folder and name it first-spring-mvc-portlet.xml. The file name is not just co-incident the same name as portlet. We must have to follow the following pattern for the Spring application context file name.
<<PORTLET_NAME>>-portlet.xml
- Where PORTLET_NAME is the value of <portlet-name> element in portlet.xml file.
- Make sure that all character should be in lower case in application context file name.
- For Example, if value of <portlet-name> in portlet.xml file is SampleInput then the Spring application context file must be sampleinput-portlet.xml
Add the following content to it.
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd"> <context:annotation-config /> <bean class="org.springframework.web.portlet.mvc.annotation.DefaultAnnotationHandlerMapping" /> </beans>
Explanation:-
- It defines parent element <beans>
- We have defined two elements <context:annotation-config> and <bean class=”org.springframework.web.portlet.mvc.annotation.DefaultAnnotationHandlerMapping” />. This both entries are required to execute annotation that we will use in controller class in STEP 9 in this blog.
Point Spring application context file to portlet class
We had defined DisptacherPortlet as portlet class in portlet.xml file. It’s our central(Front) controller. We have to tell it where we have defined our application context file.
After adding this, the portlet.xml file will look like below snippet (I am only showing the code which I have changed)
<portlet-name>first-spring-mvc</portlet-name> <display-name>First Spring Mvc</display-name> <portlet-class>org.springframework.web.portlet.DispatcherPortlet</portlet-class> <init-param> <name>contextConfigLocation</name> <value>/WEB-INF/first-spring-mvc-portlet.xml</value> </init-param> <init-param> <name>view-jsp</name> <value>/view.jsp</value> </init-param>
Note:-
- You are free to define Spring application context file in any folder under WEB-INF folder. You have to just mentioned the location accordingly in <value> element under <init-param> element in portlet.xml file.
- For example if you created folder name context just under WEB-INF and placed spring application context file in it then you have to give the path as /WEB-INF/context/first-spring-mvc-portlet.xml in <value> element under <init-param>
Put Spring JARs into Classpath

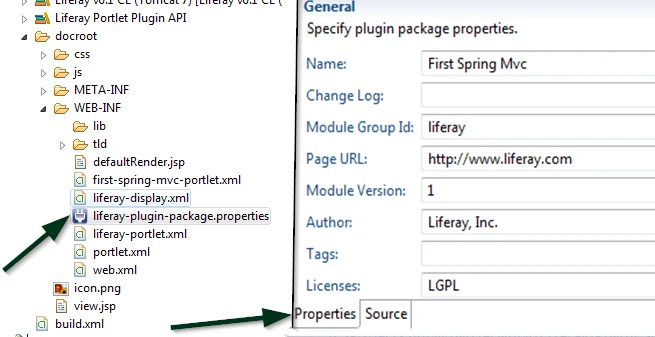

open file liferay-plugin-package.properties resides just under /WEB-INF folder. It should look like the below snippet.
name=First Spring Mvc module-group-id=liferay module-incremental-version=1 tags= short-description= change-log= page-url=http://www.liferay.com author=Liferay, Inc. licenses=LGPL

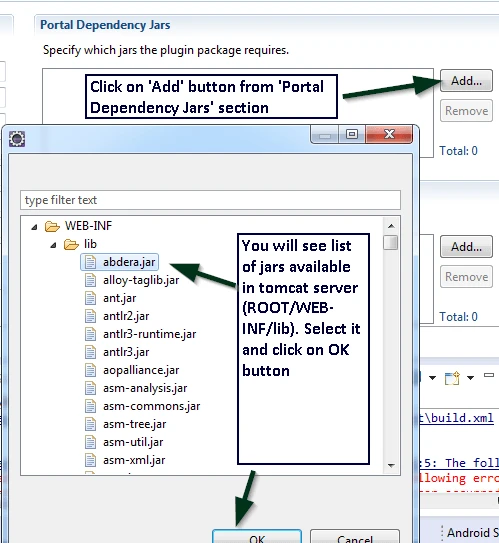

Now while you have opened it(liferay-plugin-package.properties file ) just open Properties tab as shown in below screenshot.
select on following JARs and click on the OK button.
spring-web-servlet.jar
spring-web-portlet.jar
spring-web.jar
spring-transaction.jar
spring-jdbc.jar
spring-expression.jar
spring-core.jar
spring-context.jar
spring-beans.jar
spring-asm.jar
spring-aop.jar
spring-aspects.jar
spring-context-support.jar
spring-jms.jar
spring-orm.jar
spring-oxm.jar
spring-web-struts.jar
commons-beanutils.jar
commons-collections.jar
commons-fileupload.jar
commons-io.jar
commons-lang.jar
jstl-api.jar
jstl-impl.jar
Note:- jstl-api.jar and jstl-impl.jar is not required for the spring MVC portlet. But I have just added if we need to use the JSTL tag.
In a similar way, you can also add TLDs.

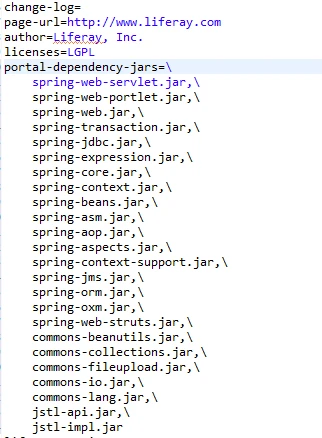

After adding these JARs, just open the Source tab of liferay-plugin-package.properties file. It will look like the below screenshot.
You will notice that new property portal-dependency-jars added and its value is comma-separated JARs that we added through the Properties tab.
Once you become an expert, you can add/remove Jars files directly through the Source tab.
Till now, we only prepared a list of JARs required in the classpath. Still, these JARs are not present in classpath. We need to build and deploy the portlet so that these JARs are made available in the classpath.

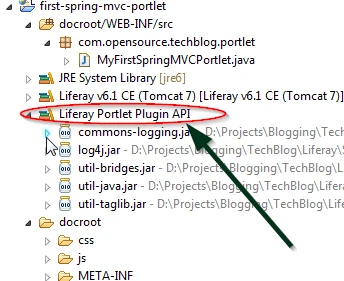

To know how this works, first, open the Liferay Portlet Plugin API just under the project before deploying the portlet. It will look like the below screenshot.
You can notice that just a few JARs are present under it.
Now Just build and deploy the portlet. You can just drag the build.xml file to the Ant window, expand it, and double click on the ‘deploy‘ target. You can refer to my previous blog Create Liferay Portlet to know how to build and deploy portlet.
Once the portlet is deployed, refresh the project and open the Liferay Portlet Plugin API library again. You will observe that all the Jars that we added in liferay-plugin-package.properties file are added here as shown in the below screenshot.
This way, whatever JARs are required, just put in liferay-plugin-package.properties file and deploy the portlet. They will be automatically be placed in the classpath. If you do not find any JAR in this list then you have to explicitly add it into the lib folder.
You can observe that the error in the portlet.xml file that came in STEP 2 will be removed. If you still able to see the same error then just do clean and build the project from Eclipse–>Project menu.
Put ViewRenderServlet entry in web.xml file.
This is very small but very important steps. Spring web MVC also support all its functionality in portlet context with the help of this servet. In short this servlet works as a bridge between Spring Web MVC to Spring Portlet MVC. It converts PortletRequest to ServletRequest and vice-versa to make Spring Web MVC works seamlessly in Portal environment. Add this Servlet entry as per below snippet.
<servlet> <servlet-name>view-servlet</servlet-name> <servlet-class>org.springframework.web.servlet.ViewRendererServlet</servlet-class> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>view-servlet</servlet-name> <url-pattern>/WEB-INF/servlet/view</url-pattern> </servlet-mapping>
These are hard-core settings so just put this entry in web.xml as it is.
Configure View Layer
SpringMVC framework supports many view technologies (like JSP, Freemarker,Velocity,PDF etc). For simplicity, We will use the jsp.
In the Spring framework, DispatcherPortlet will take the help of ViewResolver to choose the view( JSP in our case).
So we need to configure the view (through View Resolver) in the Spring application context file (first-spring-mvc-portlet.xml ). Add following entry in first-spring-mvc-portlet.xml file
<bean id="jspViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="viewClass" value="org.springframework.web.servlet.view.InternalResourceView" /> <property name="prefix" value="/WEB-INF/jsp/" /> <property name="suffix" value=".jsp" /> <property name="order" value="1" /> </bean>
Explanation:-
- We had defined ViewResolver as a bean in the application context file
- In prefix property, we have to give the folder path where we kept all JSP files.
- in suffix property, we have to give as “.jsp”.
- For example, suppose we created jsp folder directly under /WEB-INF, then the prefix will be “/WEB-INF/jsp/” and suffix will be “.jsp“.
- I will show how this works in STEP 9.
- The Order property is not required if we only have one View Resolver. If we define more than one View Resolver (ex. one is for JSP, another is for Freemarker etc.) then we have to give the order value so that DispatcherPortlet will scan in that order to find the view.
Create JSP file
Now we will create JSP. Create folder jsp under /WEB-INF folder and create one jsp file called defaultRender.jsp and simple write one line in it like “<h1>This is Default Render Jsp</h1>”
Create Request handler (Controller).
If you observe the very first image in this blog, I have mentioned the controller (right side). These controllers will do the actual job. The Front Controller (DispatcherPortlet) will only delegate the request to the appropriate request handler (Controller).
So our next step is to write a request handler. We will call it Controller,so don’t confuse this Controller with the Front Controller (DispatchPortlet).
First, create package com.opensource.techblog.portlet and class MyFirstSpringMVCPortlet in it. You are free to choose any package and class name you want.
Portlet will have View, Edit, and Help mode. In the Spring MVC Portlet framework, we can have a separate Controller (Request Handler) for each of these modes.
We have to explicitly tell DispatcherPortlet which mode will be supported by Controller. We will do this by giving annotation to MyFirstSpringMVCPortlet so that it will look like the below snippet.
package com.opensource.techblog.portlet; import javax.portlet.RenderRequest; import javax.portlet.RenderResponse; import org.springframework.stereotype.Controller; import org.springframework.ui.Model; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.portlet.bind.annotation.RenderMapping; @Controller(value = "MyFirstSpringMVCPortlet") @RequestMapping("VIEW") public class MyFirstSpringMVCPortlet{ }
Explanation:-
- First, we had given annotation @Controller which will be used to denote that this is our controller. The value will be the same as the class name
- The second annotation is @RequestMapping(“VIEW”) which tells to DispatcherPortlet that this controller will support VIEW mode.
- One controller can support only one portlet mode at a time. So in case if we require EDIT mode, then we have to write a separate Controller.
Add the following method in MyFirstSpringMVCTestController class
@RenderMapping public String handleRenderRequest(RenderRequest request,RenderResponse response,Model model){ return "defaultRender"; }
Explanation:-
- first, we have defined @RenderMapping annotation to this method. This annotation tell that this is default render method. It means whenever we place this portlet, it will render this method. You also can write another render method with “action” as key and its value. When we create RenderURL and passing value which match the “action” value of render method, then it will be called. I will show how to write another render method with “action” as key in next blog.
- The method name is handleRenderRequest. You are free to give any name.
- Its first parameter is RenderRequest and the second parameter is RenderResponse. third parameter is object of type Model. We can set attribute in this Model object and can access it in JSP. We will see it in the next blog.
- For simplicity, there is no other code and this method is returning just one String “defaultRender“. We have to return the name of the JSP at the end of this render method.
- In STEP 7 we have defined prefix as /WEB-INF/jsp/ and suffix as “.jsp” in View Resolver. So in this case it will pre-pand “/WEB-INF/jsp/” to defaulRender and append “.jsp”. So the final string will be /WEB-INF/jsp/defaultRender.jsp.
- This way DispatcherPortlet will find the jsp path and render it.
Define Controller (Request Handlers) in Spring application context file
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:util="http://www.springframework.org/schema/util" xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-3.0.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-3.0.xsd http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-3.0.xsd"> <context:annotation-config /> <bean class="org.springframework.web.portlet.mvc.annotation.DefaultAnnotationHandlerMapping" /> <bean class="com.opensource.techblog.portlet.MyFirstSpringMVCPortlet" /> <bean id="jspViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="viewClass" value="org.springframework.web.servlet.view.InternalResourceView" /> <property name="prefix" value="/WEB-INF/jsp/" /> <property name="suffix" value=".jsp" /> <property name="order" value="1" /> </bean> </beans>
I have added an entry for MyFirstSpringMVCPortlet as a bean.
So far I have used just one method (default render) render method. We can add more than one render method ( which will be differentiated by the value of the “action” key).
We also can add more than one Action method and Resource Method.
Action method will be called when we create URL by <portlet:actionURL> and resource method can be called when we create URL by <portlet:resourceURL> from JSP.
I have written a separate blog Render and Action methods in Spring MVC portlet to explain how these methods (Render and Action) will work in Spring MVC Portlet framework.
You can refer to the current blog to create TEMPLATE for Spring MVC Portlet project.
Summing Up
- Spring MVC Portlet framework is a mirror image of the Spring MVC Web framework.
- Liferay allows creating Spring MVC Portlet
- In Spring MVC Portlet, one controller support one portlet mode (View, Edit, Help, etc) at a time.
- Spring MVC Portlet support multiple renders and multiple action method.
Download Source
